The CFPM401 is the OAKWORKS Medical treatment table designed for C-arm imaging and interventional procedures, with four electrically controlled movement functions. Its design serves accurate patient positioning, unobstructed access for imaging equipment and ergonomic working conditions for healthcare professionals.
The integrated headrest, the wide height adjustment range and the 56-inch (142 cm) metal-free imaging area make it particularly well suited to image-guided pain management and interventional procedures.
This video loads from a third party
To show the YouTube video you need to accept cookies, because the embed sends data to YouTube. Until then you can open the video directly.
Watch on YouTubeKey benefits
- Integrated headrest for stable, comfortable patient positioning
- 56-inch (142 cm) metal-free imaging area
- Wide, electrically adjustable height range of 26–44 inches (66–112 cm)
- Four electric movement functions
- Trendelenburg tilt: +15° / –11°
- Longitudinal travel: 25 cm
- Lateral travel: 20 cm, ±10 cm
- Maximum patient weight: 227 kg
- Multifunction hand control
- Optional foot control
- Castor design supporting mobile use
- Purpose-built for image-guided procedures
Purpose-built for image-guided procedures

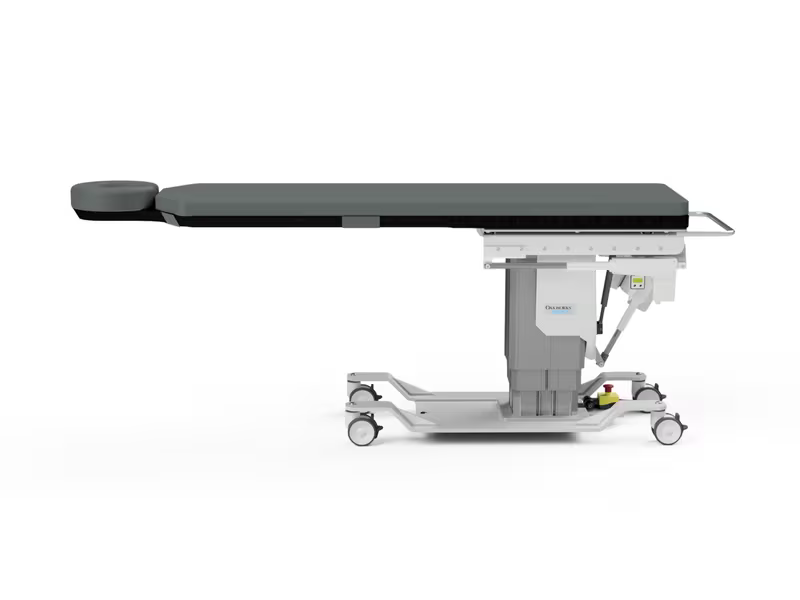

The CFPM401 has a carbon fibre table top measuring 56 cm wide and 214 cm long. The large, metal-free imaging area allows the imaging system to be positioned correctly and gives good access to the anatomical region under examination.
The table’s four electric movement functions allow the patient to be positioned precisely for different procedures. Height, Trendelenburg tilt, longitudinal travel and lateral travel are all electrically controlled.
Pain management and interventional applications
OAKWORKS Medical offers the CFPM401 specifically for image-guided pain management and interventional procedures.
The design supports stable patient positioning while providing the access needed for interventional procedures and for the imaging system. Several optional accessories are available to assist specialised patient positioning, including:
- spinal positioning system
- interventional supine positioning cushion system
- carbon fibre arm support
- fluoroscopy extension
- T-rail mounting adapter
- arm support for use with the integrated headrest.
Stability and patient safety
The table has a maximum capacity of 227 kg, making it suitable for a wide range of patients. Standard equipment includes lockable 10 cm castors, which provide stable positioning while still allowing the table to be moved when required.
For mobile use, 13 cm castors can be ordered as an option.
Comfort and ergonomics
Standard equipment on the CFPM401 includes the 5 cm thick, radiolucent Comfort Foam® table pad, which supports patient comfort during longer procedures.
A Crescent face pillow is supplied for the integrated headrest, and two patient safety straps are also part of the standard equipment.
